Brand Name : U TECH
Model Number : BST-5
Certification : CE SGS ISO
Place of Origin : Jiangsu, China (Mainland)
MOQ : 1 Set/Sets
Price : discussible
Payment Terms : L/C, T/T
Supply Ability : 15 Set/Sets per Month
Delivery Time : 45 work days
Packaging Details : Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine
Condition : New
Material : Stainless Steel
Automatic : Yes
Warranty : 2 Years
Max. Product Volume : 5L
Weight : 4.5T
Heating Power : 15 KW
Screw Dia. : 75, 80, 90 mm
Plastic HDPE extrusion blow molding machine 5L for toilet detergent bottle
Introduction
This machine closing moulds by electric powder. Reliable run, low energy consumption, and strong force of closing moulds.
Extruder part adopt frequency converted, automatic temperature controlled! And it is can do single and multi layer bottles, liquidlevel line bottles and plastic bottles etc. that below 5 liter.
Blow molding is a manufacturing process which forms hollow plastic parts, consisting of three main types: extrusion, injection, and injection stretch. The blow molding machine process begins by melting down the plastic and forming it into a parison, a tube-like piece of plastic with a hole in one end. The parison is clamped into a mold and compressed air is blown into it until the plastic fills the mold. Once the plastic has cooled and hardened, the mold opens up and the part is ejected.
Temperature control units,like Delta T Systems', are used in blow molding machine process applications to cool process molds. Molds must be cooled quickly to maintain a high quality product and to increase part production output. Some blow molding machine process applications will require a central chilling system which is used to cool the process water. To avoid condensation, the piping of a custom temperature control unit can be insulated with elastomeric closed-cell foam like the one shown below.
Feature
1. Reasonable structure design and solid frame manufacturing to insure running stability.
2. Good head material runner deisgn and precision metal process for changing color easily.
3. According to your specified request, our machine can be made with co-extrusion of 2~4 layers and view stripe line.
4. Colorful touch screen, cantilever operation box, bottle collective shelves, scraps sliding channel and safety protection.
5. Total machine control system well match with scraps on-line deflashing, angle adjustable blowing unit, neck rotary cutting, in-mould labeling, weight testing and leakage testing, product conveying & packing.
Parameter
SPECIFICATIONS FOR 5 L Blow Molding Machine |
|||
|
Max. Product Volume |
5 L |
|
Product Max. Dia. |
18 CM |
||
Thickness of Mould |
150-220 mm |
||
Width of Mould Board |
303 mm |
||
Distance of Mould Board |
230 mm |
||
Production Speed |
200-300 PCS/HR |
||
Applicable Raw Material |
HDPE/LDPE/PP |
||
Distance of Mold |
160-500 mm |
||
Force of Closing Mold |
60 KN |
||
Machine Parameters |
Screw Dia. |
75, 80, 90 mm |
|
Screw Rod Length/Dia. Ratio |
25:1 |
||
Speed Control Method |
PLC |
||
Energy Consumption |
Heating Power |
15 KW |
|
Hydraulic Pump Power |
4.5 KW |
||
Extruder Motor Power |
18.5 KW |
||
Air Consumption |
0.6 m3/Min. |
||
Machine Dimension and weight |
Dimension |
1960x1180x1960mm |
|
Weight |
4.5 Ton |
![]() |

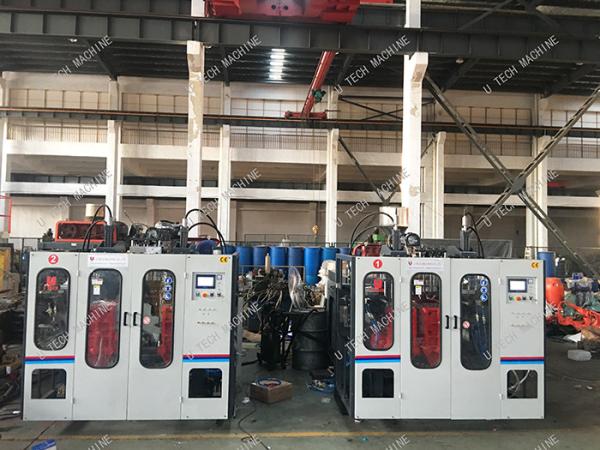

Toilet Detergent Bottle Plastic Blow Molding Machine Stainless Steel Material Images |
